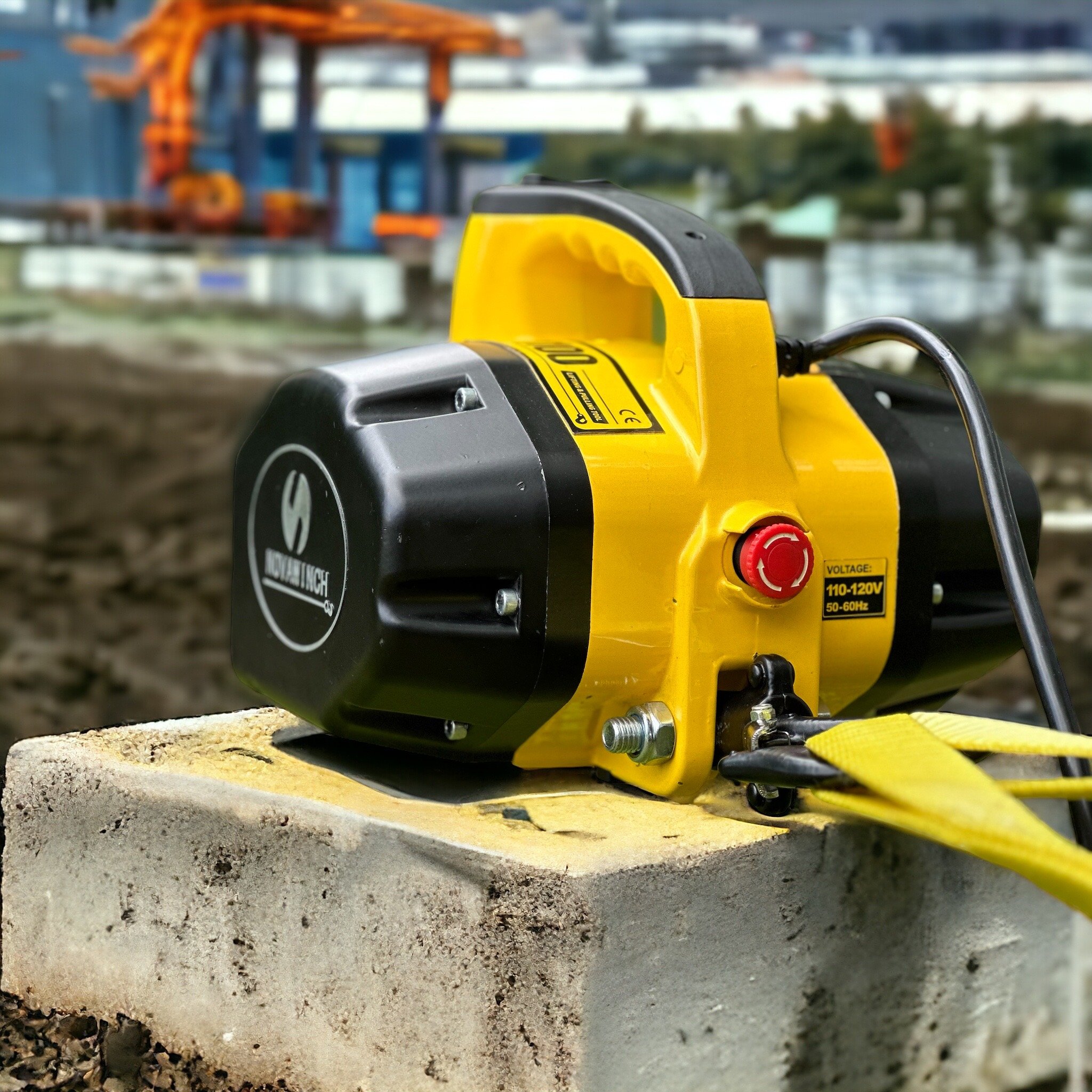

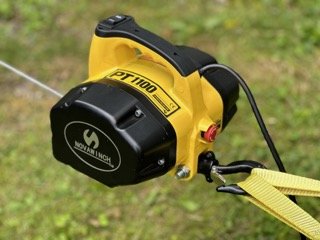

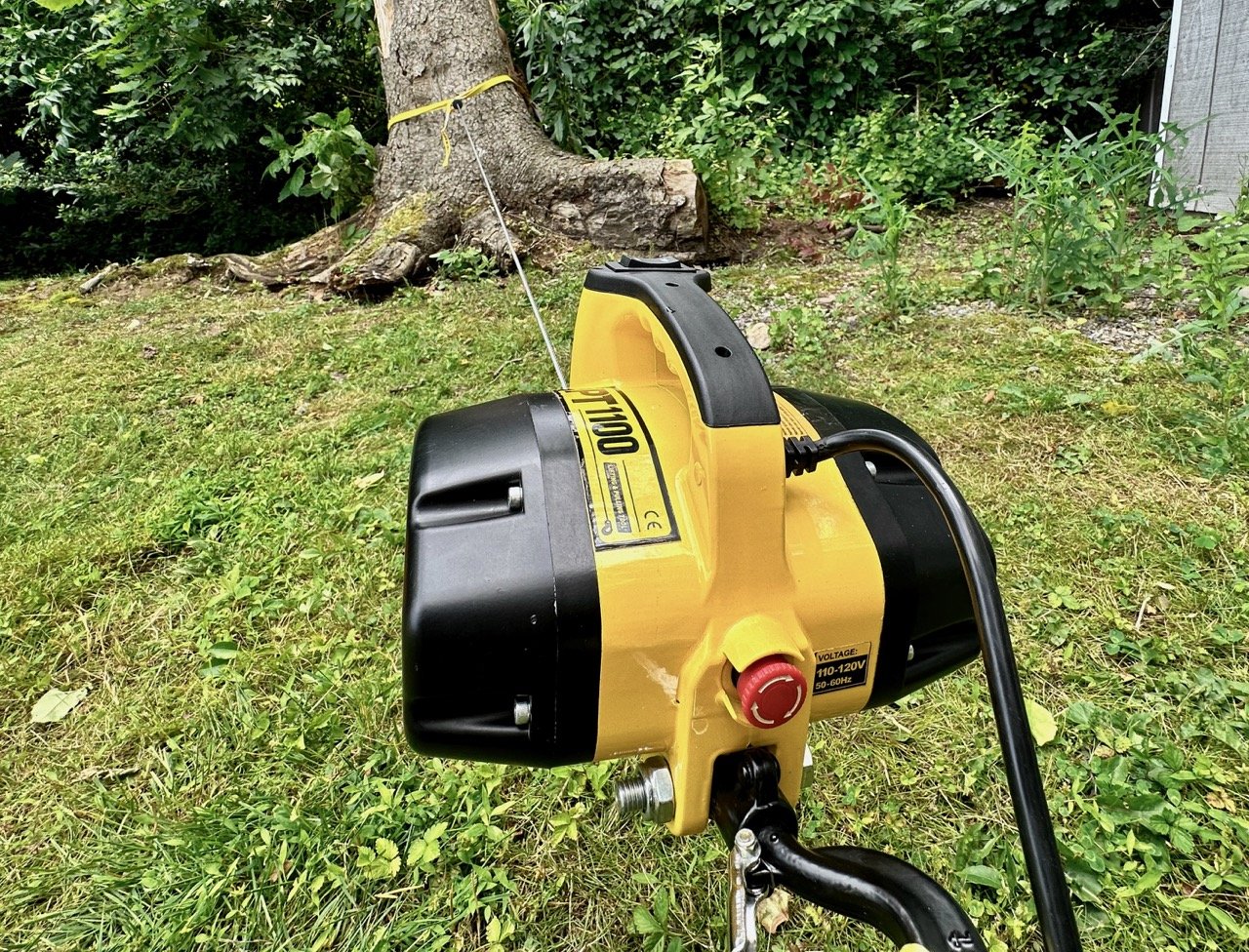

PT1100 Portable Winch - Lifting Tool, Hoist AC 120v
Introducing Novawinch's most portable winch.
The Novawinch PT1100 gives you the freedom to use a winch when and where you need it - rather than being constrained by complex mounting.
Stand-out Features
1,100 lbs of pulling power.
New! Synchro Brushless motor is far more efficient, uses less power and offers incredible service life.
A380 Aluminium alloy housing and steel frame support.
Dynamic dual spring brake design for added stability while you work.
Large diameter drum with groove and rope tensioner to ensure the rope is always on the first layer and avoids “nesting”.
Roller fairlead design, prolongs rope longevity.
360º Rotatable hook with safe tongue.
Introducing Novawinch's most portable winch.
The Novawinch PT1100 gives you the freedom to use a winch when and where you need it - rather than being constrained by complex mounting.
Stand-out Features
1,100 lbs of pulling power.
New! Synchro Brushless motor is far more efficient, uses less power and offers incredible service life.
A380 Aluminium alloy housing and steel frame support.
Dynamic dual spring brake design for added stability while you work.
Large diameter drum with groove and rope tensioner to ensure the rope is always on the first layer and avoids “nesting”.
Roller fairlead design, prolongs rope longevity.
360º Rotatable hook with safe tongue.
Introducing Novawinch's most portable winch.
The Novawinch PT1100 gives you the freedom to use a winch when and where you need it - rather than being constrained by complex mounting.
Stand-out Features
1,100 lbs of pulling power.
New! Synchro Brushless motor is far more efficient, uses less power and offers incredible service life.
A380 Aluminium alloy housing and steel frame support.
Dynamic dual spring brake design for added stability while you work.
Large diameter drum with groove and rope tensioner to ensure the rope is always on the first layer and avoids “nesting”.
Roller fairlead design, prolongs rope longevity.
360º Rotatable hook with safe tongue.
| Specifications | |
|---|---|
| Model | PT1100 |
| Voltage | 110-120V 50/60Hz |
| Maximum Capacity | 1100 lbs. (500kg) |
| Line Speed | 6.5 fpm (2mpm) |
| Motor Power | 1.0 hp (0.75kW) |
| Wire Rope | 3/16" x 16' (4.8mm x 4.88m) |
| Weight | 24 lbs |
| Dimensions | 9.45" x 8.11 x 8.2" (240mmx 206mmx210mm) |
| Working Time | 1 minute on, 20 minutes cooling at 1100 lbs |
