NOVAWINCH T-Series 3,500 ATV/UTV Synthetic Rope Winch (NVT 3500)
Novawinch T-Series is our workhorse series featuring proven parts and great performance. Novawinch's experience in building world class winches brings innovative concepts to this high-performance and affordable range without sacrificing reliability.
In this version, the synthetic rope replaces the wire rope for lighter weight and potentially safer winching.
Novawinch T-Series is our workhorse series featuring proven parts and great performance. Novawinch's experience in building world class winches brings innovative concepts to this high-performance and affordable range without sacrificing reliability.
In this version, the synthetic rope replaces the wire rope for lighter weight and potentially safer winching.
Novawinch T-Series is our workhorse series featuring proven parts and great performance. Novawinch's experience in building world class winches brings innovative concepts to this high-performance and affordable range without sacrificing reliability.
In this version, the synthetic rope replaces the wire rope for lighter weight and potentially safer winching.
The T-Series Lineup has all the features you want with the durability and reliability you need. With pulling capacities from 2500-4500lbs, the T series features an all-metal chassis engineered for long life and low maintenance. The Novawinch T-Series offers industrial winch performance in a compact package to conquer even the toughest situations.
Specifications
| Rated Line Pull | 3,500lbs (1589kgs) single line |
| Motor: | DC 12V: 2.8hp (2.1kW) |
| Gear Box | 3-Stage Planetary |
| Gear Ratio | 180:1 |
| Clutch | Sliding Ring Gear |
| Braking Action | Mechanical, Automatic Load Holding |
| Fairlead | Aluminum Hawse |
| Synthetic Rope | 3/16″ × 45.9′ (Φ4.8mm × 14m) |
| Remote | Waterproof handheld remote 9.85' (3.0m); Waterproof Mini-rocker remote 9.85' (3.0m) |

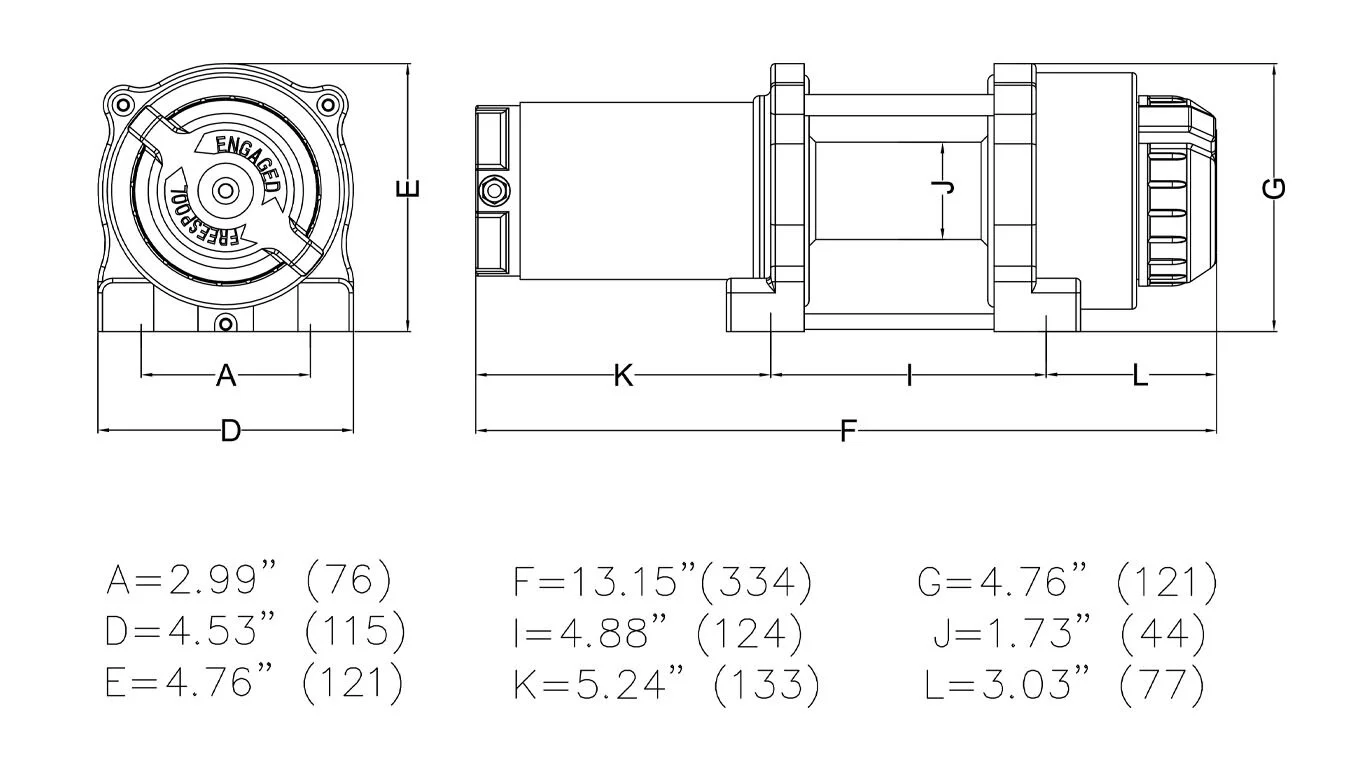

| Dimensions | 13.15″×4.53″×4.76″(334mm×115mm×121mm) |
| Mounting Bolt Pattern | 4.9″×3″(124mm×76.2mm) |
| Weight | 26.4lbs (12kgs) |
Performance
| Line pull lbs(kgs) | No Load | Max Load |
| Line speed FPM(MPM) | 13.7(4.2) | 5.6(1.7) |
| Motor current Amps | 26 | 180 |
