NOVAWINCH T-Series 10,000 Synthetic Rope off-road winch (NVT 10000)
Novawinch T-Series is our workhorse series featuring proven parts and great performance. Novawinch's experience in building world class winches brings innovative concepts to this high-performance and affordable range without sacrificing reliability. The T-Series 12,000 (also known as the NVT 10000) winch is where performance meets value.
Novawinch T-Series is our workhorse series featuring proven parts and great performance. Novawinch's experience in building world class winches brings innovative concepts to this high-performance and affordable range without sacrificing reliability. The T-Series 12,000 (also known as the NVT 10000) winch is where performance meets value.
Novawinch T-Series is our workhorse series featuring proven parts and great performance. Novawinch's experience in building world class winches brings innovative concepts to this high-performance and affordable range without sacrificing reliability. The T-Series 12,000 (also known as the NVT 10000) winch is where performance meets value.
Features:
Classic design meets:
IP67 Rated Waterproofing
Safety standards: SAE J706 and is CE marked.
Chrome-plated freespool pull and turn controls.
High-temperature, sealed contactor featuring silver contact pads for excellent conductivity and longevity.
Specifications
| Specifications NVT 10000 | |
|---|---|
| Rated Line Pull | 10000lbs(4536kgs)single line |
| Motor(Series wound): | DC 12V: 6.3hp/4.5kW DC 24V:6.9hp/5.2kW |
| Gear Box | 3-Stage Planetary |
| Gear Ratio | 196:1 |
| Clutch | Pull and Turn |
| Braking Action | Mechanical, Automatic, 100% Load Holding |
| Hawse | CNC'd Aluminum |
| Synthetic Rope | 3/8″×85.3′(9.2mm×26m) |
| Remote | Waterproof handheld, 12.7' (3.9m) |

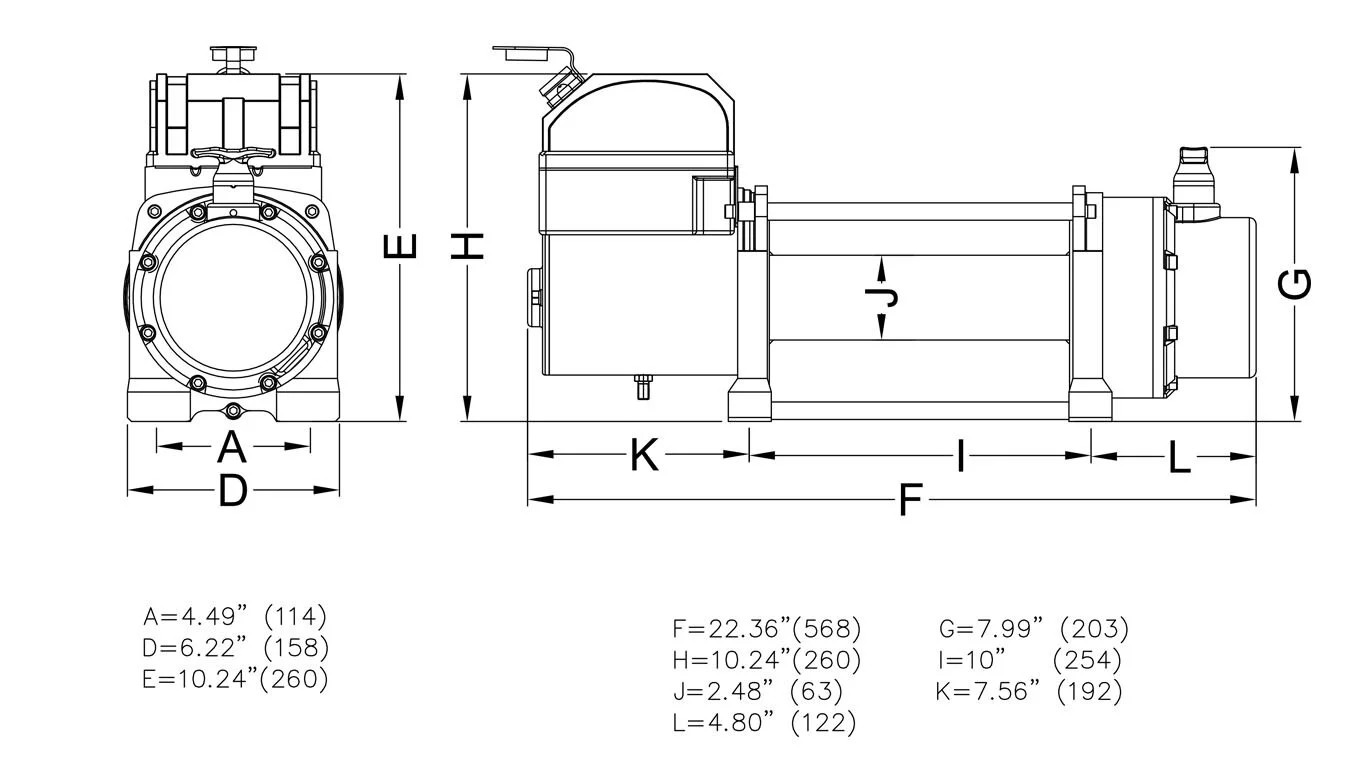

| Dimensions | 12V: 22.36″×6.2″×10.24″(568mm×158mm×260mm) 24V: 22.36″×6.2″×10.63″(568mm×158mm×270mm) |
| Mounting Bolt Pattern | 10″×4.5″(254mm×114.3mm) |
| Weight | 12V: 92lbs(41.8kgs) 24V: 83.7lb (42.5kg) |
Performance
| DC: 12V | ||
|---|---|---|
| Line pull lbs(kgs) | No Load | Max Load |
| Line speed FPM(MPM) | 20.6(6.3) | 5.2(1.6) |
| Motor current Amps | 80 | 380 |
| DC: 24V | ||
|---|---|---|
| Line pull lbs(kgs) | No Load | Max Load |
| Line speed FPM(MPM) | 17.7(5.4) | 5.6(1.7) |
| Motor current Amps | 70 | 220 |
