Novawinch Stinger 8000 Winch for Truck, Recovery, Trailer - 8000 lbs. capacity 12v
NEW! Stinger upgrades our workhorse series with proven parts and great performance. NOVAWINCH’S experience in building world-class winches brings innovative concepts to this high-performance yet affordable range without sacrificing reliability
NEW! Stinger upgrades our workhorse series with proven parts and great performance. NOVAWINCH’S experience in building world-class winches brings innovative concepts to this high-performance yet affordable range without sacrificing reliability
NEW! Stinger upgrades our workhorse series with proven parts and great performance. NOVAWINCH’S experience in building world-class winches brings innovative concepts to this high-performance yet affordable range without sacrificing reliability
We believe you can build a high-performance winch at a fair price without cutting corners. From full IP68 weatherproofing to a top-shelf solenoid, our engineers worked overtime fitting all these amazing components into a compact package that fits most applications. This is Stinger.
Features:

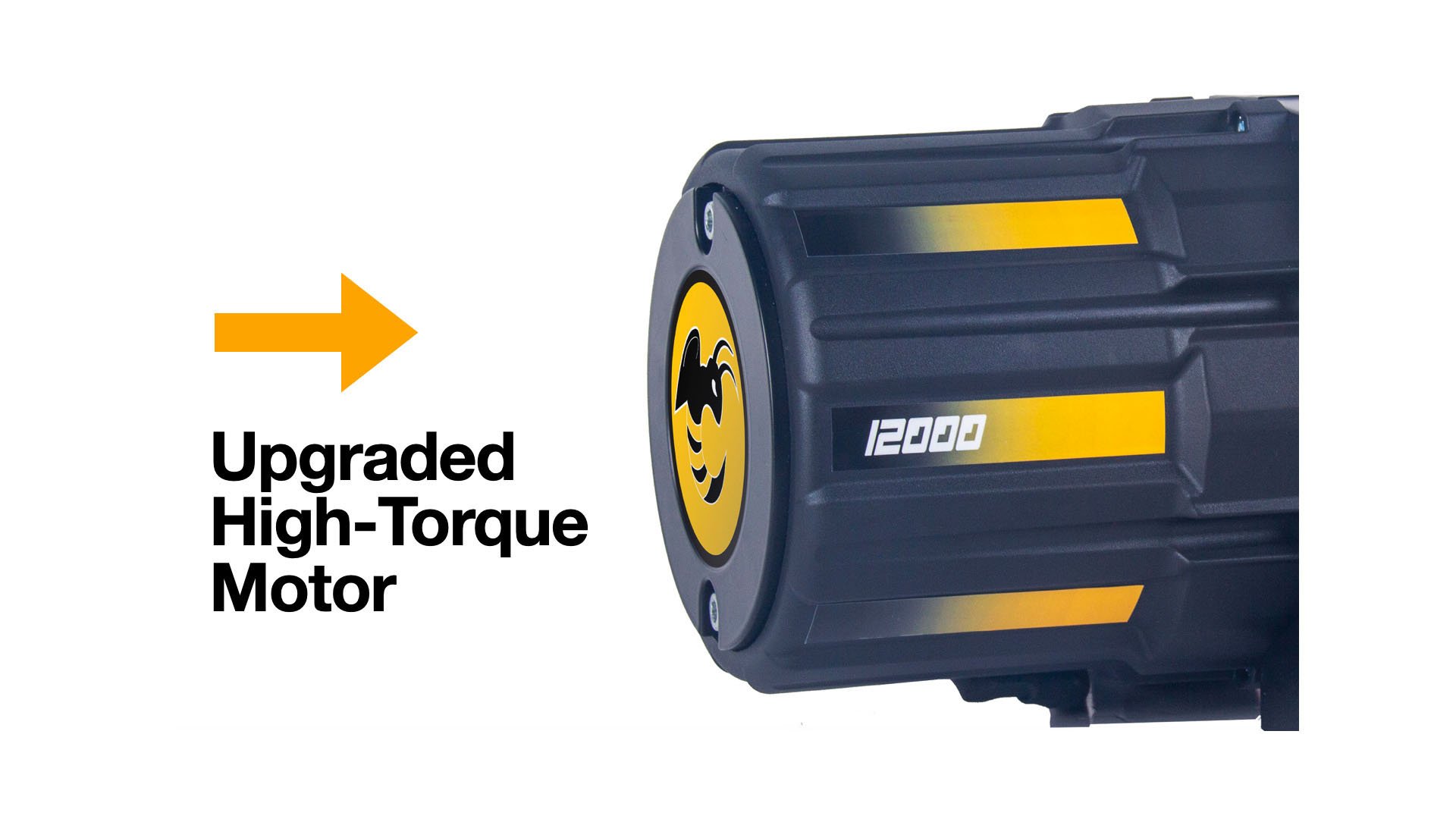

Upgraded Motor - Thick copper windings deliver more power with ease and cool faster
Upgraded Electronics - features our top-shelf solenoid
Upgraded Drive: our large-diameter splined Drum costs more but provides far better power transfer.
Upgraded Weatherproofing: Our IP68 rated seals keep out water, mud, sand and dust
Upgraded Safety: our pull and turn clutch avoids unintended freespooling on the trail
| Stinger 8000 Performance By Layer | ||||
|---|---|---|---|---|
| Layer | Rated Pull | Cable Capacity | ||
| lbs. | kgs | Ft | M | |
| 1 | 8000 | 3629 | 19.8 | 6 |
| 2 | 6515 | 2958 | 44.1 | 13.4 |
| 3 | 5496 | 2495 | 72.9 | 22.2 |
| 4 | 4752 | 2157 | 95 | 29 |
| Stinger 8000 Performance Max/Min | ||||
|---|---|---|---|---|
| Line Pull | Line Speed | Current | ||
| lbs. | kgs | FPM | MPM | Amps |
| 0 | 0 | 19.4 | 5.9 | 70 |
| 8000 | 3629 | 4.9 | 1.5 | 330 |
| Stinger 8000 Specifications | |
|---|---|
| Rated Line Pull | 8000 lbs. (3629 kg) |
| Voltage | 12v DC |
| Motor | 5.6hp (4.2kW) |
| Gear Train | 3 Stage Planetary |
| Gear Ratio | 196:1 |
| Clutch | Pull & Turn |
| Braking Action | Mechanical, Auto Load Holding |
| Wire Rope | 5/16” x 95’ (8.1mm x 29m), 4-Way Roller Fairlead |
| Synthetic Rope | 5/16” x 95’ (8.1mm x 29m), CNC'd Aluminum Hawse |
| Drum Size | 2.48” x8.8” (63mm x 244mm) |
| Winch Dimensions | 21.257” x 6.49” x9.05” (540x165x230mm) |
| Mounting Bolt Pattern | 10” x 4.5” (254mm x 114.3mm) |
| Remote: | Wired, 12’ (3.4m) |
| Weight: | |
