NOVAWINCH QD Series (NVQD) Winch
The NOVAWINCH NVQD is a small but powerful winch designed to help you pull up to 3,000lbs (or up to 6,000 lbs with pulley block, not included). Includes a trailer hitch mount plus a handy hand-crank lever for when you need just a little more from your winch. A diverse tool for numerous outdoor applications; use on ATV vehicles where battery capacity is limited, use to haul boats onto trailers from the water, or use anywhere you have the need for a winch.
The NOVAWINCH NVQD is a small but powerful winch designed to help you pull up to 3,000lbs (or up to 6,000 lbs with pulley block, not included). Includes a trailer hitch mount plus a handy hand-crank lever for when you need just a little more from your winch. A diverse tool for numerous outdoor applications; use on ATV vehicles where battery capacity is limited, use to haul boats onto trailers from the water, or use anywhere you have the need for a winch.
The NOVAWINCH NVQD is a small but powerful winch designed to help you pull up to 3,000lbs (or up to 6,000 lbs with pulley block, not included). Includes a trailer hitch mount plus a handy hand-crank lever for when you need just a little more from your winch. A diverse tool for numerous outdoor applications; use on ATV vehicles where battery capacity is limited, use to haul boats onto trailers from the water, or use anywhere you have the need for a winch.
FEATURES:
Self-locking brake.
Electronic control in and out.
Hand crank operation for manual spooling.
Heavy molded winch cover for protection and durability in operation.
Unit can be fitted to work with radio remote control, (optional).
| Specifications | |
|---|---|
| Rated line pull: | 3000lbs(1361kgs)single line |
| Motor(Series wound): | DC 12V: 0.75hp/0.57kW |
| Gear train: | 4 stage planetary gear |
| Gear ratio: | 586:1 |
| Clutch: | Sliding gear |
| Braking action: | Automatic in the gear |
| Wire Rope: | 7/32″×50′(Φ5.4mm×15.2m) |
| Drum size: | 1.12″×2.44″(28.5mm×62mm) |

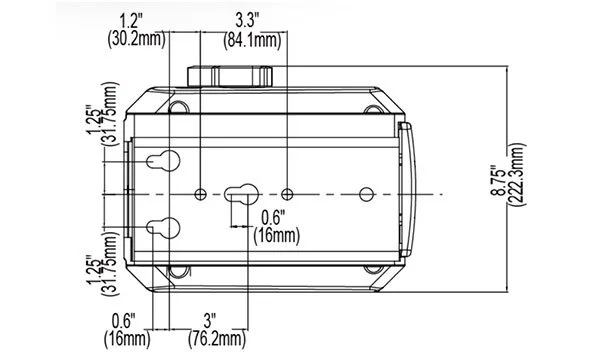

| Dimensions: | 10.8″×8.75″×7.87″(275mm×222.3mm×200.1mm) |
| Bolt pattern: | 3.3″(84.1mm) |
| Net Weight: | 31.3lbs(14.2kgs) |
| Performance | ||
|---|---|---|
| Line pull lbs(kgs) | 0(0) | 3000(1361) |
| Line speed FPM(MPM) | 3.28(1.0) | 2.50(0.8) |
| Motor current Amps | 20 | 50 |
