NOVAWINCH K-Series 2,000 Utility Winch
Novawinch K-Series is our base series featuring reliable parts and stellar performance. Novawinch's experience in building world class winches brings innovative concepts to this capable and affordable range without sacrificing reliability.
Novawinch K-Series is our base series featuring reliable parts and stellar performance. Novawinch's experience in building world class winches brings innovative concepts to this capable and affordable range without sacrificing reliability.
Novawinch K-Series is our base series featuring reliable parts and stellar performance. Novawinch's experience in building world class winches brings innovative concepts to this capable and affordable range without sacrificing reliability.
The K-Series Lineup has all the features you want with the durability and reliability you need. With pulling capacities from 2500-4500lbs, the K-Series features an all-metal chassis engineered for long life and low maintenance. The Novawinch K-Series offers industrial winch performance in a compact package to conquer even the toughest situations.
Specifications
| Rated line pull: | 2000lbs(908kgs)single line |
| Motor: | DC 12V: 1.8hp/1.4kW |
| 1 stage planetary gear | |
| Gear ratio: | 153:1 |
| Clutch: | Pull and Turn |
| Braking action: | Dynamic and Mechanical |
| Fairlead: | 4-way roller fairlead |
| Wire rope: | 5/32″×49′(4mm×15m) |
| Drum size: | 1.24″×2.88″(31.5mm×73mm) |

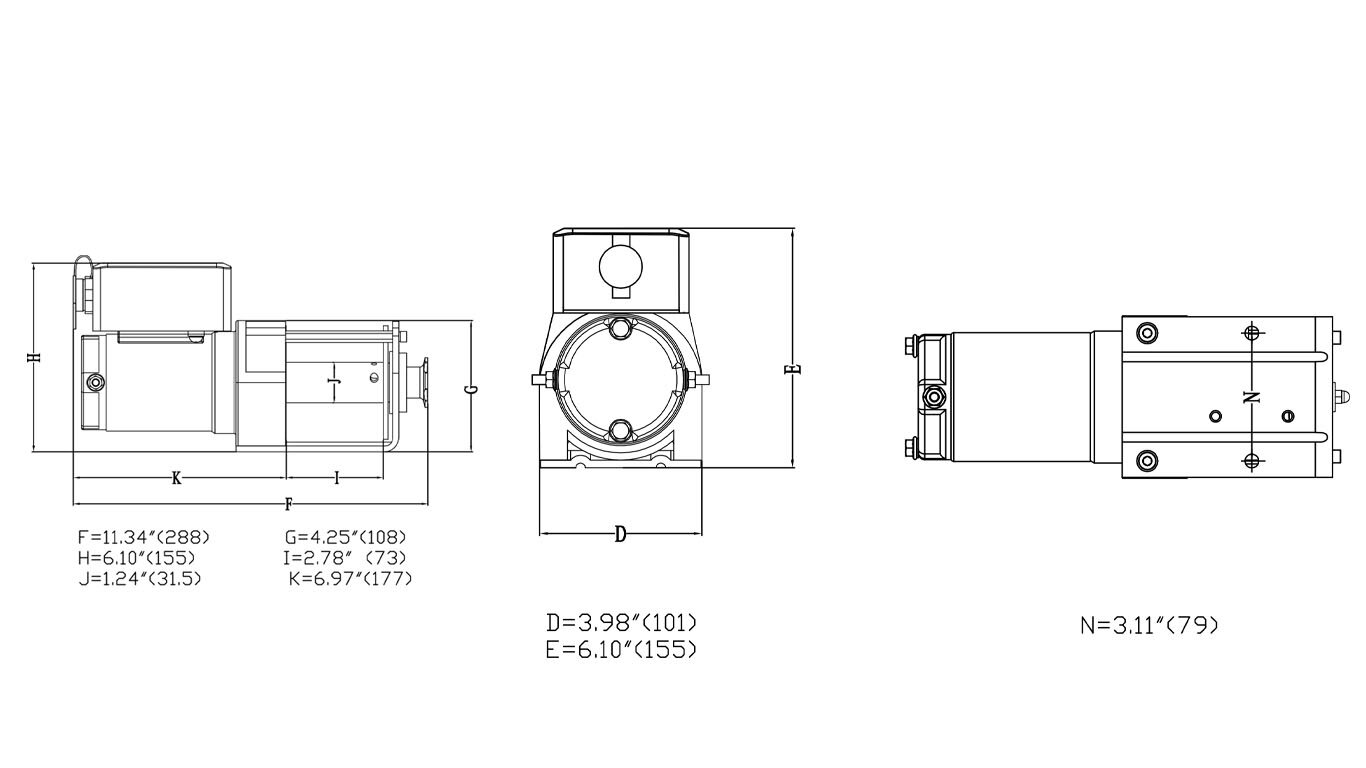

| Dimensions: | 11.02″x4.33″x4.25″(280mmx110mmx108mm) 11.37″x4.33″x6.1″(289mmx110mmx155mm) |
| Bolt pattern: | 3.13″(79.5mm) |
| Net Weight: | 16lbs(7.3kgs) |
Performance
| K-Series 2000 | ||
|---|---|---|
| Line pull lbs(kgs) | No Load | Max Load (2000(908)) |
| Line speed FPM(MPM) | 8.2(2.5) | 3.3(1) |
| Motor current Amps | 14 | 120 |
