HEN 10000 Hydraulic Winch, Planetary
The powerful and robust NOVAWINCH HEN Hydraulic Winch Series has proven superior performance in markets and applications worldwide.
Two-wire rope mounting holes on the drum for safe operation
Dual balance valve ensures reliable brake function
Two-stage high strength hardened steel planetary gears, provide tough performance and efficiency
The highly efficient, long-life hydraulic motor can be rotated to meet different oil pipe lengths
Reliable 100% automatic multi-disc hydraulic brake system
FEATURES:
Excellent weight to strength ratio.
Extreme-duty winch sealing, enables superior water resistance.
Various accessories available for many applications include Wire rope, wire rope tensioner, hook, roller fairlead, mounting plate, etc. Comes with standard manual clutch or optional pneumatic clutch.
Performed SAE J706 PART6.2.2 duty cycle test, with HEN18000 winch reaching 240m.
75% rated line pull durability test was conducted over 500 cycles, without any gear or motor damage.
Note:
Wire rope not included.
Optional accessories:
Heavy-Duty Roller Fairlead: Part 200011068083
Cable Tensioner: Part 803011068006
The powerful and robust NOVAWINCH HEN Hydraulic Winch Series has proven superior performance in markets and applications worldwide.
Two-wire rope mounting holes on the drum for safe operation
Dual balance valve ensures reliable brake function
Two-stage high strength hardened steel planetary gears, provide tough performance and efficiency
The highly efficient, long-life hydraulic motor can be rotated to meet different oil pipe lengths
Reliable 100% automatic multi-disc hydraulic brake system
FEATURES:
Excellent weight to strength ratio.
Extreme-duty winch sealing, enables superior water resistance.
Various accessories available for many applications include Wire rope, wire rope tensioner, hook, roller fairlead, mounting plate, etc. Comes with standard manual clutch or optional pneumatic clutch.
Performed SAE J706 PART6.2.2 duty cycle test, with HEN18000 winch reaching 240m.
75% rated line pull durability test was conducted over 500 cycles, without any gear or motor damage.
Note:
Wire rope not included.
Optional accessories:
Heavy-Duty Roller Fairlead: Part 200011068083
Cable Tensioner: Part 803011068006
The powerful and robust NOVAWINCH HEN Hydraulic Winch Series has proven superior performance in markets and applications worldwide.
Two-wire rope mounting holes on the drum for safe operation
Dual balance valve ensures reliable brake function
Two-stage high strength hardened steel planetary gears, provide tough performance and efficiency
The highly efficient, long-life hydraulic motor can be rotated to meet different oil pipe lengths
Reliable 100% automatic multi-disc hydraulic brake system
FEATURES:
Excellent weight to strength ratio.
Extreme-duty winch sealing, enables superior water resistance.
Various accessories available for many applications include Wire rope, wire rope tensioner, hook, roller fairlead, mounting plate, etc. Comes with standard manual clutch or optional pneumatic clutch.
Performed SAE J706 PART6.2.2 duty cycle test, with HEN18000 winch reaching 240m.
75% rated line pull durability test was conducted over 500 cycles, without any gear or motor damage.
Note:
Wire rope not included.
Optional accessories:
Heavy-Duty Roller Fairlead: Part 200011068083
Cable Tensioner: Part 803011068006
| SPECIFICATION | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | First layer line pull | First layer line speed | Working pressure diff. | Oil flow supply | Gear ratio | Wire rope dia. | Layer | Wire rope capacity | |||||
| lbs | kg | fpm | mpm | psi | MPa | l/min | inch | mm | ft | m | |||
| HEN8000 | 10000 | 4536 | 21.3 | 6.5 | 2030 | 14 | 55 | 16.9:1 | Φ13/32″ | Φ10.3 | 4 | 98.4’ | 30 |
| Model | HEN10000 | |||||
|---|---|---|---|---|---|---|
| Layer of cable | Rated line pull per layer | Line speed | Wire rope capacity per layer | |||
| lbs | kg | fpm | mpm | ft | m | |
| 1 | 10000 | 4536 | 21.3 | 6.5 | 16.1’ | 4.9 |
| 2 | 8296 | 3763 | 25.36 | 7.8 | 41.3’ | 12.6 |
| 3 | 7088 | 3215 | 30.2 | 9.2 | 71.2’ | 21.7 |
| 4 | 6188 | 2807 | 34.5 | 10.5 | 98.4’ | 30 |
| Model | Weight | |
|---|---|---|
| lbs | kg | |
| HEN10000 | 110 | 50 |
| Specifications | |
|---|---|
| First Layer Line Pull |
10000lbs (4536kg) |
| First Layer Line Speed | 21.3 fpm (6.5mpm) |
| Working Pressure Differential | 2030 psi (14MPa) |
| Oil Flow Supply | 55 l/min |
| Gear Ratio | 16.9:1 |
| Wire Rope | 13/32″(10.3mm) |
| Layers | 4 |
| Wire Rope Capacity | 98.4 ft (30m) |
| Weight | 110 lbs (50kg) |

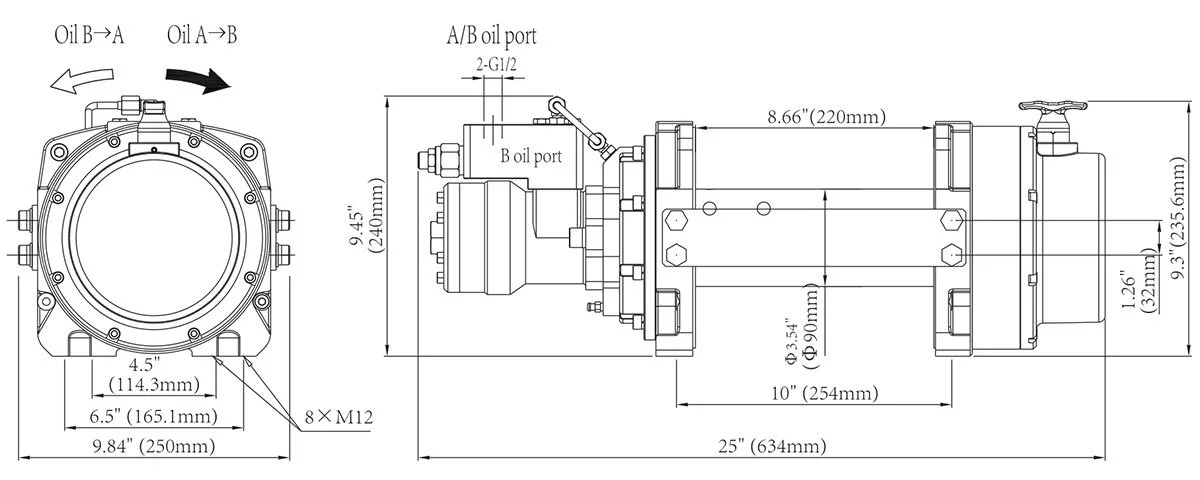

| Dimensions | 25" (634mm)L x 9.3" (235.6mm) H x 9.84" (250mm)W |
WARNING:
1. The winch will never be used for hoisting people or hoisting objects above people.
2. Do not use the clutch under load.
3. Do not equip winch into oil supply system without a relief valve.
NOTE:
1. The recommended oil flow supply range is 40-90 l/min.
2. Dual balance valves as standard, winch must be used in an Independent oil supply system which with a relief valve.
