Super B 2500 12v Synthetic Rope ATV/SxS Winch for vehicle recovery
Built to last, the new Super B Series from Novawinch is a workhorse. We’ve packed a high-torque motor (that we wind at our factory), an ultra-compact gearset to insure this fits into the tightest of spaces and all-metal construction - it can handle whatever you’ll find on the trail.
Features:
High-Torque permanent magnet motor (up to 2.6hp)
360º All-metal free spool control
Mechanical plus automatic load holding brake
Differential ultra-compact gearset with a 171:1 ratio
Welded, steel drum - stronger and costlier than cheap cast aluminum
Standard ATV mount pattern: 4.9” x3”
Built to last, the new Super B Series from Novawinch is a workhorse. We’ve packed a high-torque motor (that we wind at our factory), an ultra-compact gearset to insure this fits into the tightest of spaces and all-metal construction - it can handle whatever you’ll find on the trail.
Features:
High-Torque permanent magnet motor (up to 2.6hp)
360º All-metal free spool control
Mechanical plus automatic load holding brake
Differential ultra-compact gearset with a 171:1 ratio
Welded, steel drum - stronger and costlier than cheap cast aluminum
Standard ATV mount pattern: 4.9” x3”
Built to last, the new Super B Series from Novawinch is a workhorse. We’ve packed a high-torque motor (that we wind at our factory), an ultra-compact gearset to insure this fits into the tightest of spaces and all-metal construction - it can handle whatever you’ll find on the trail.
Features:
High-Torque permanent magnet motor (up to 2.6hp)
360º All-metal free spool control
Mechanical plus automatic load holding brake
Differential ultra-compact gearset with a 171:1 ratio
Welded, steel drum - stronger and costlier than cheap cast aluminum
Standard ATV mount pattern: 4.9” x3”
Specifications
| Rated Line Pull | 2,500 lbs (1,135kgs) |
| Motor: | Sealed 1.9hp/1.5kW Permanent Magnet |
| Gear Box | Differential |
| Gear Ratio | 171:1 |
| Clutch | Ergonomic 360° Control |
| Braking Action | Mechanical, Automatic Load Holding |
| Fairlead | Aluminum Hawser |
| Synthetic Rope | 1/4″×55′(6.5mm×16.76m) |
| Remote | ; Waterproof Mini-Rocker 9.85' (3.0m) |

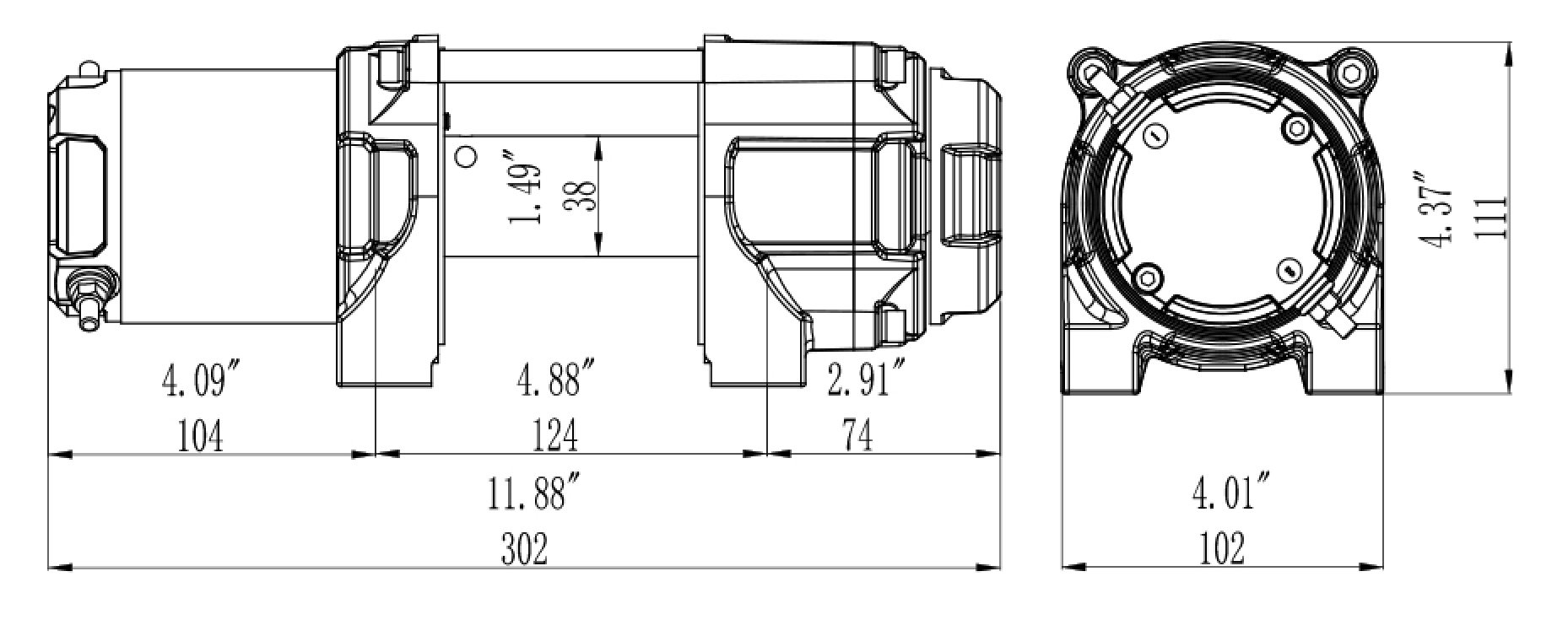

| Dimensions | 11.88" L x 4.01" D x 4.37" (302mm L x 102mm D x 111mm H) |
| Mounting Bolt Pattern | 3.0" x 4.9" (76mm x 124mm) |
Performance
| Line Pull | No Load | Full Load |
| Line Speed | 15 FPM (4.6MPM) | 5.5 FPM (1.7MPM) |
| Motor Current | 32 Amps | 230 Amps |
Downloadable Technical Sheet PDF
